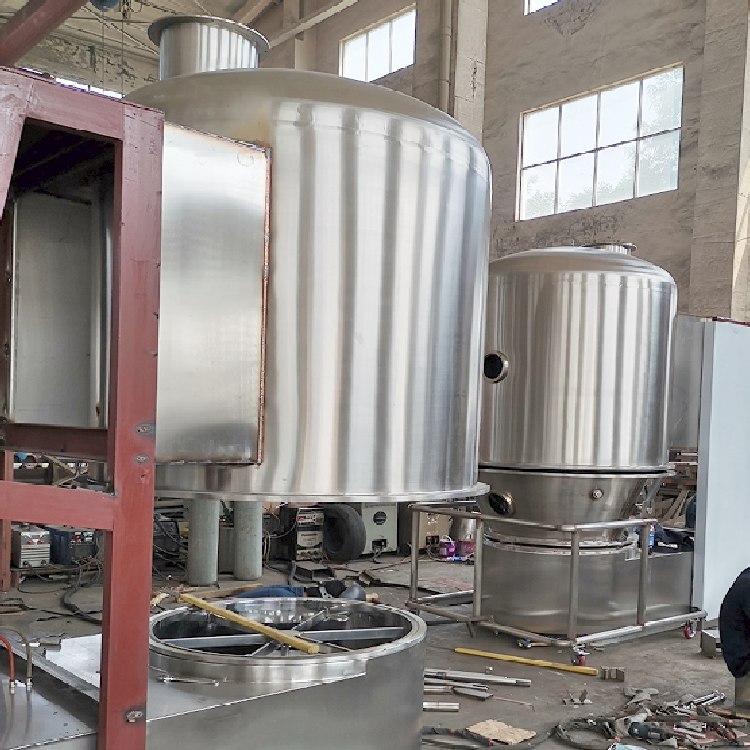

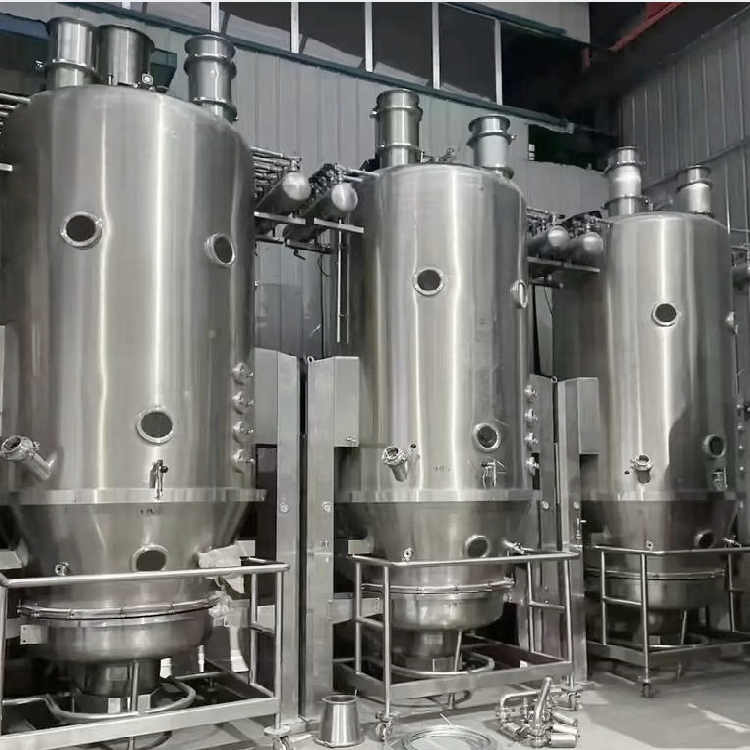

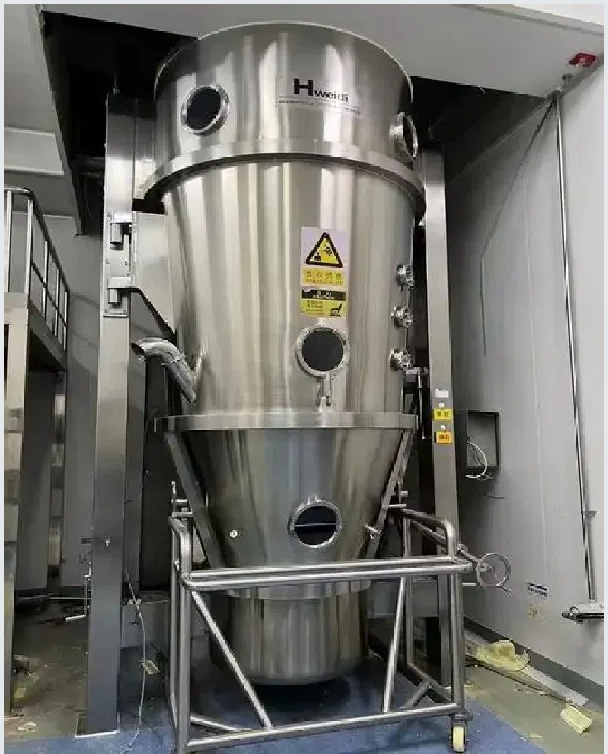

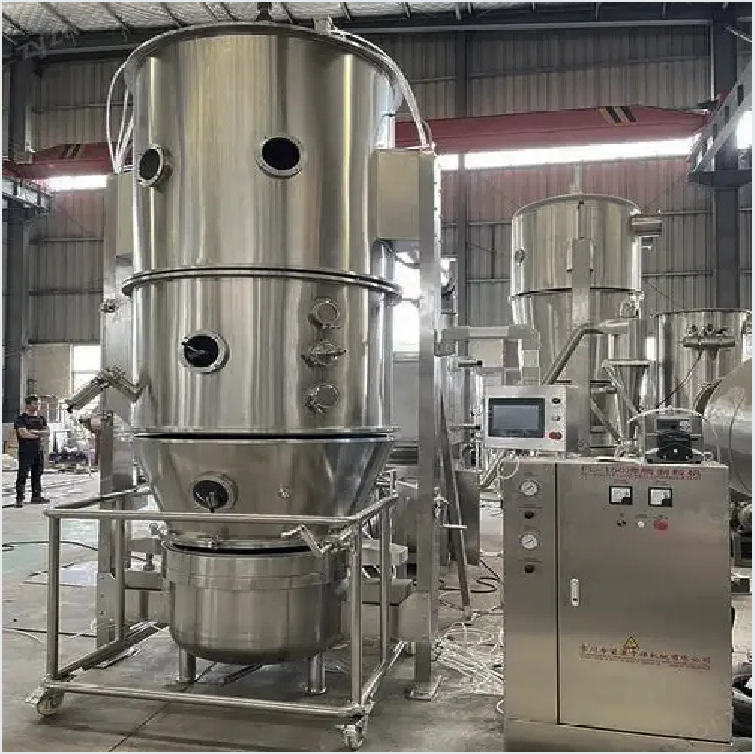

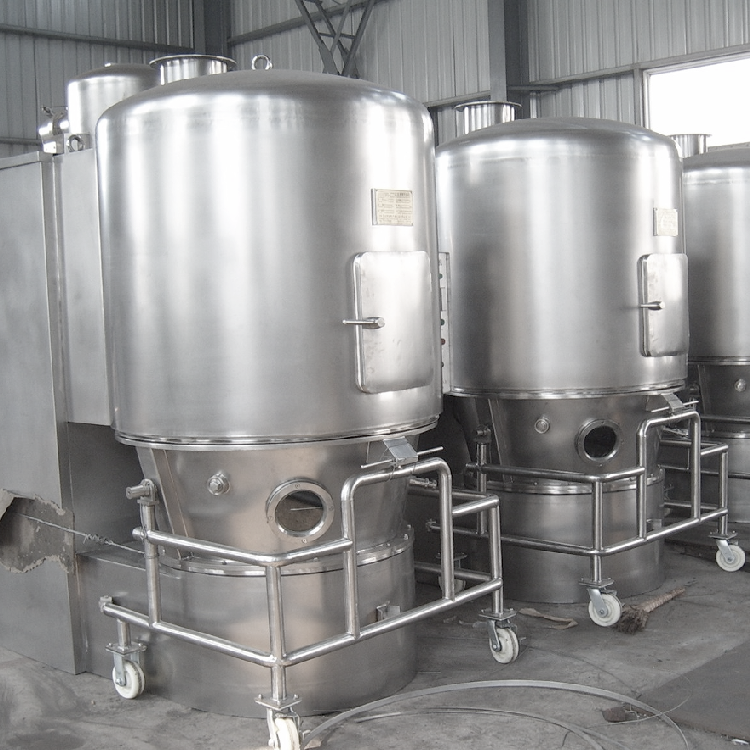

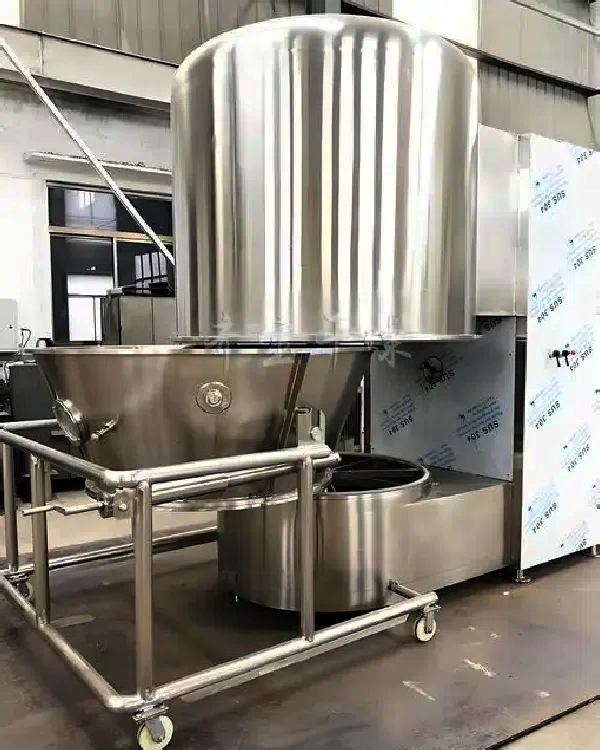

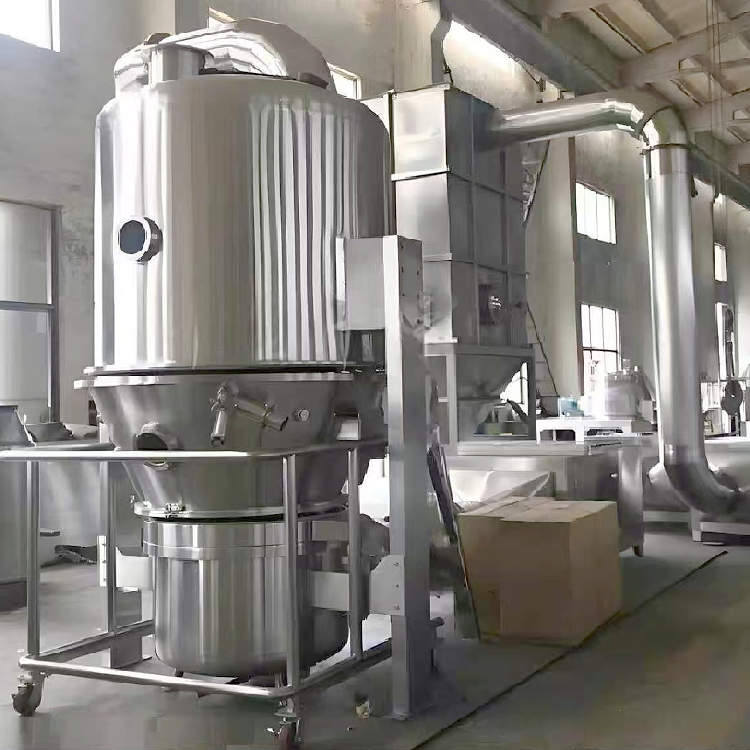

GFG series high-efficiency boiling dryer

Working principle

After being heated and purified, the air is introduced from the bottom by the induced draft fan and passes through the mesh plate of the hopper. In the studio, fluidization is formed through stirring and negative pressure, and the water evaporates rapidly and is carried away by the exhaust, resulting in rapid drying of the material.

Performance characteristics

1. The fluidized bed has a circular structure to avoid dead corners.

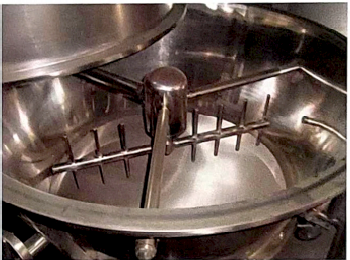

2. The hopper is equipped with mixing to avoid the aggregation of wet materials and the formation of channel flow during drying.

3. Using the method of flipping to empty materials is convenient, quick, and thorough. It can also be designed with automatic feeding and discharging systems according to requirements.

4.  Sealed negative pressure operation with air flow passing through filtration. Easy to operate, clean environment.

5. The drying speed is fast, the temperature is uniform, and the drying time for each batch is generally 20-30 minutes, depending on the material.

Application areas

1. Mechanism screw extrusion particles, swinging particles, wet high-speed mixed granulation particles.

2. Drying of wet granules and powdered materials in fields such as medicine, food, feed, and chemical engineering.

3.  Large particle, small block, and viscous block granular materials.

4. Konjac and other materials that undergo volume changes during drying.

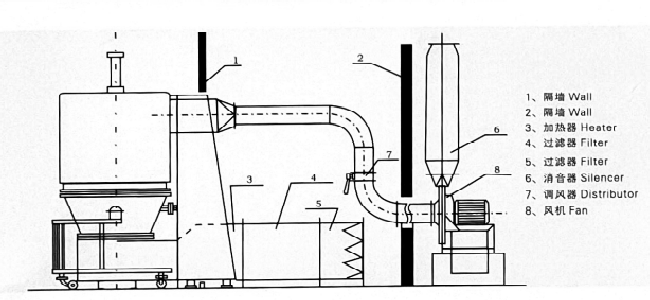

Structural schematic diagram

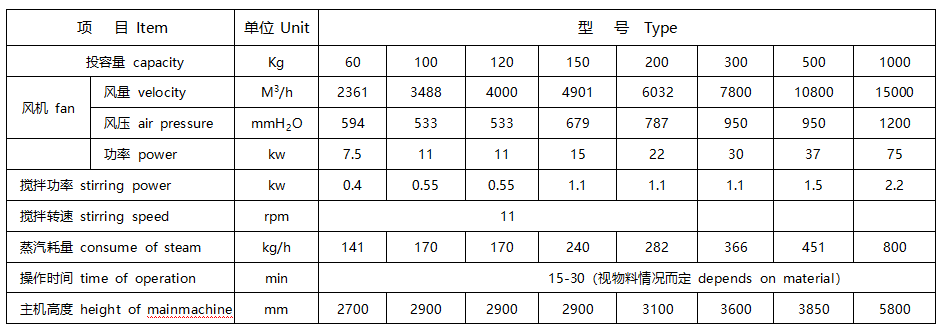

Technical specifications
