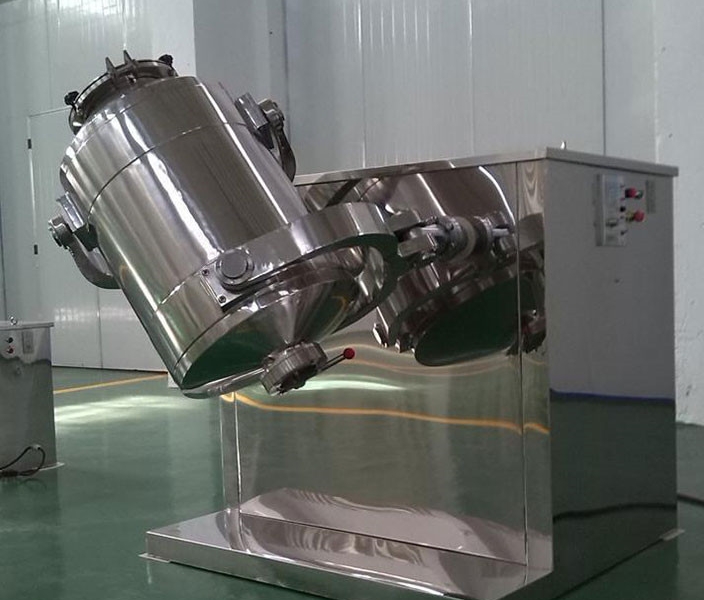

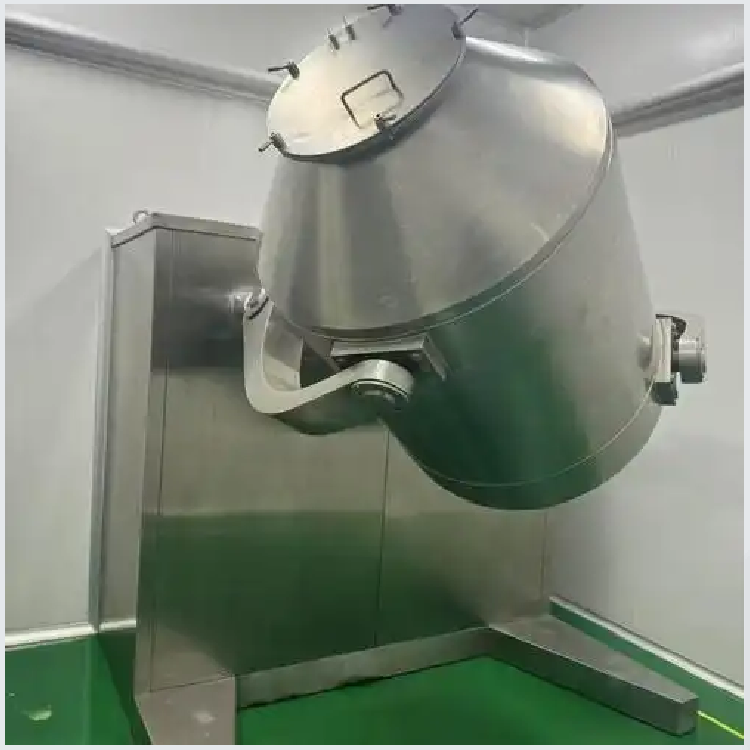

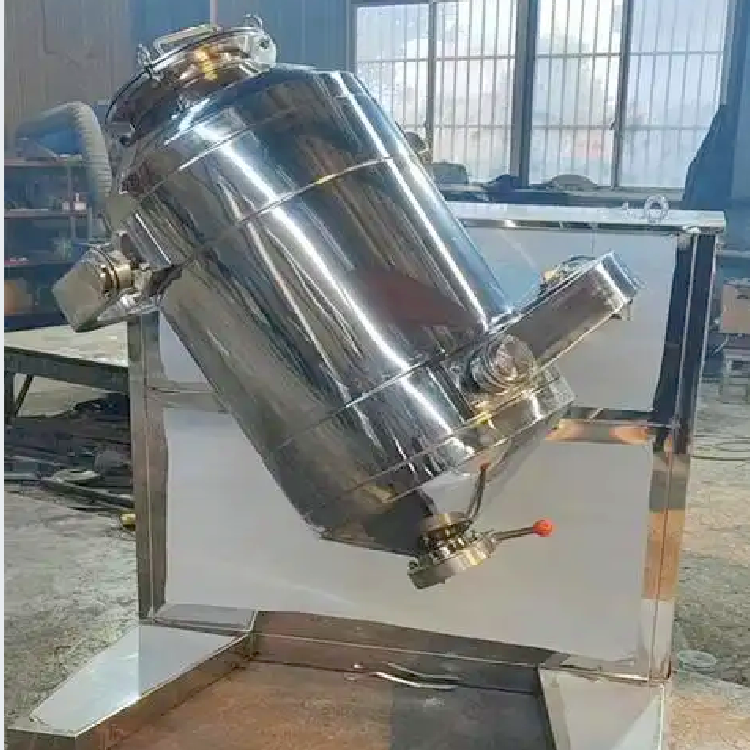

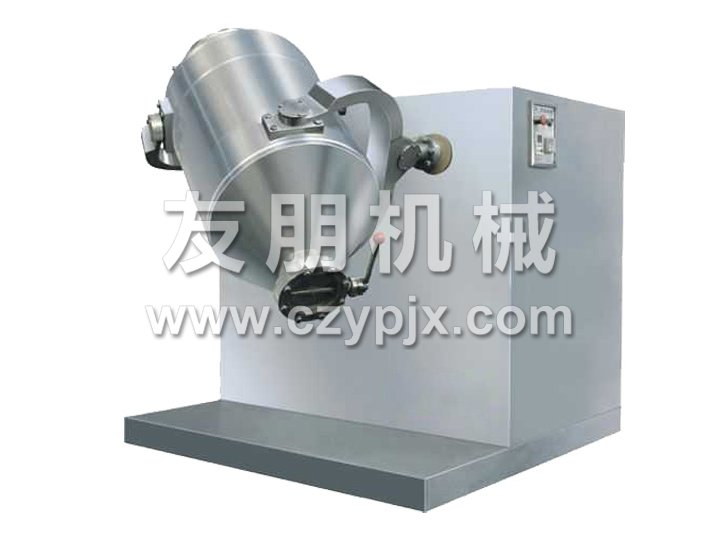

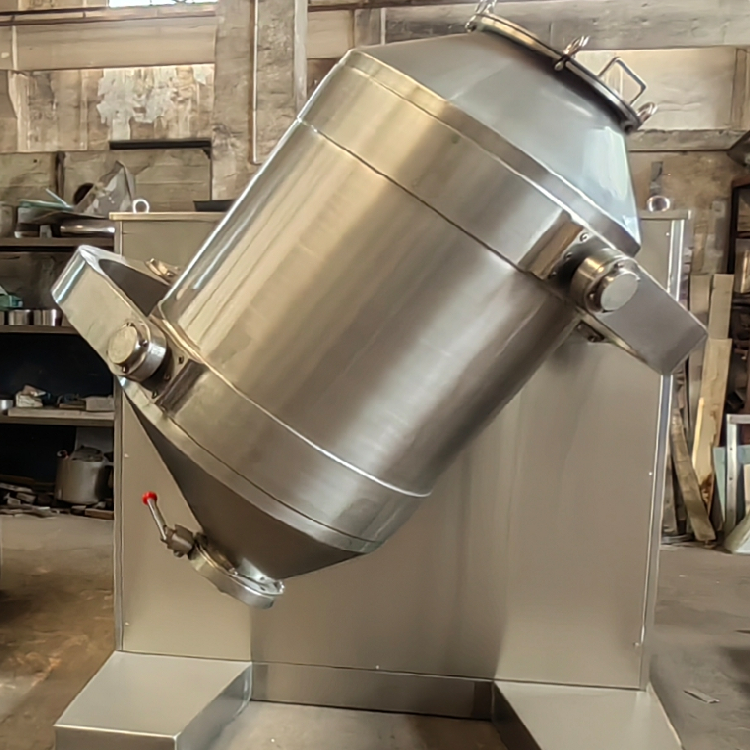

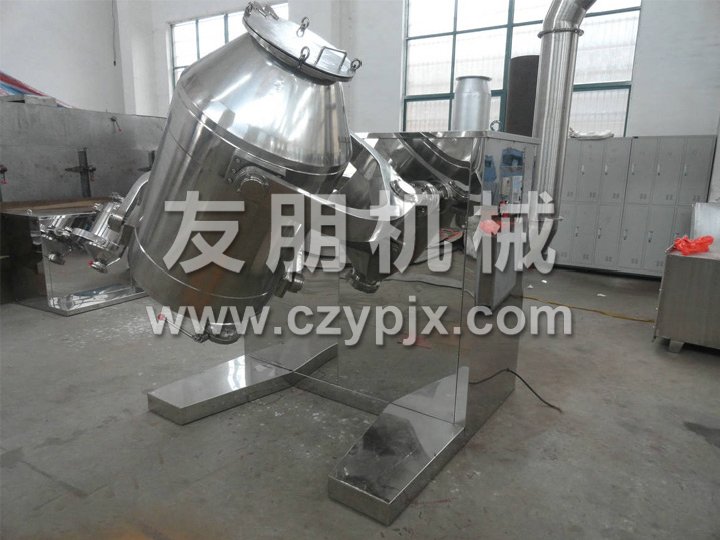

SYH series Three-dimensional mixer

Working principle

The material cylinder is driven by the driving shaft to produce a three-way compound movement of translation, rotation, and rolling, pushing the material to move in the three directions of the cylinder, thereby realizing the mutual flow, diffusion, accumulation, and doping of the materials to achieve uniform mixing.

Performance characteristics

● The cylinder moves in multiple directions, and the material has no centrifugal force, no specific gravity segregation, stratification, and accumulation. It is suitable for materials with large weight differences and high mixing ratios.
● The cylinder loading rate is high, up to 90% (ordinary mixers are only 50%), with high efficiency and short mixing time.
● The mixing cylinder has a unique design, the inner wall is finely polished, there are no dead corners, no contamination of materials, and it is easy to unload and clean.
● Suitable for high uniformity mixing of powdery and granular materials in pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy industries.

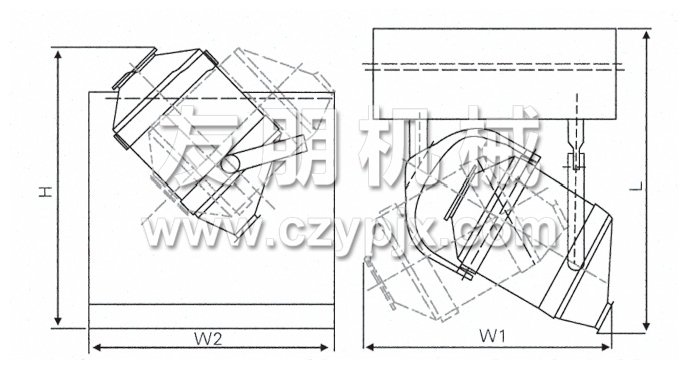

Structural schematic diagram

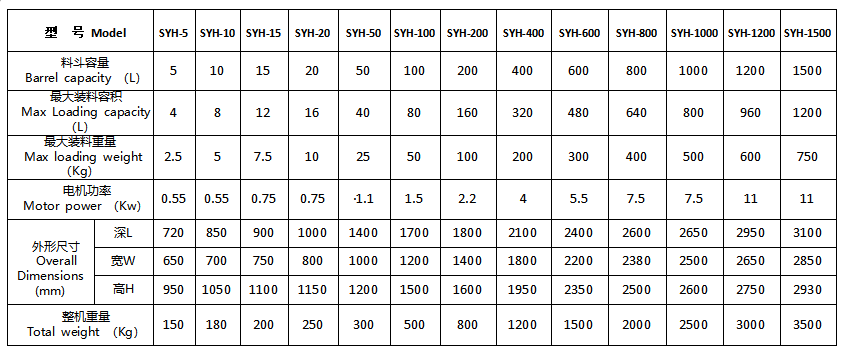

Technical parameters

  Note: The specific gravity of material stacking is calculated at 0.6g/cm3. If it exceeds this limit, please indicate it when placing an order.
